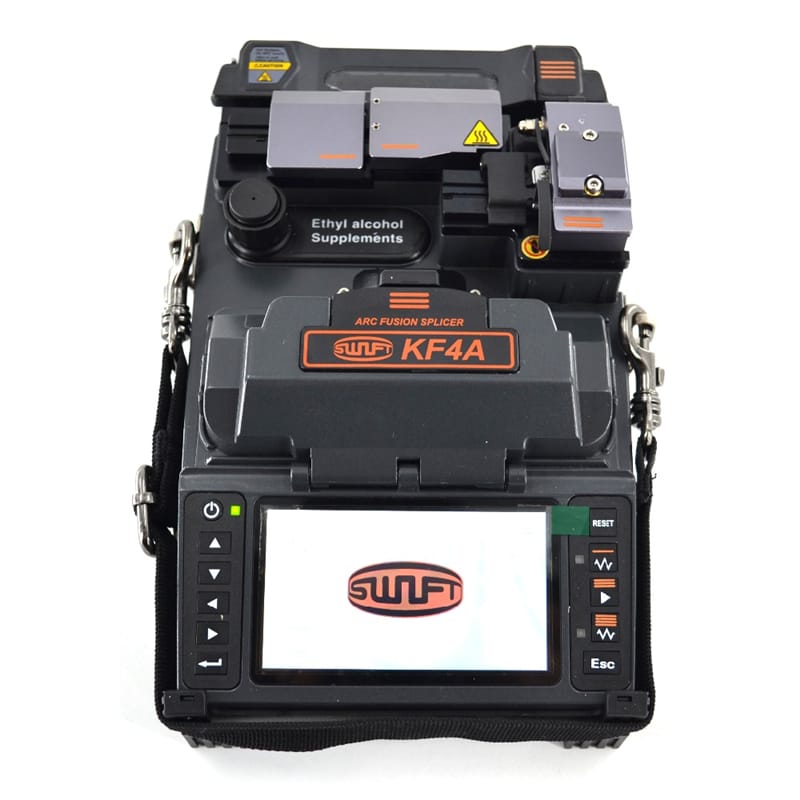

Deskripsi
Features
• Compact, Lightweight and Convenient
• Resistance to Shock, Dust and Water
• Resistance Wide LCD: 4.3inch
Specifications
• Fiber alignment Active V-Groove Alignment
• Applicable type of fibers 0.25mm, 0.9mm, 2.0mm, 3.0mm, Indoor cable
• Fiber count Single fiber
• Applicable fiber dimensions Cladding diameter: 125㎛ / Coating diameter: 150㎛~3mm
• Fiber setting and cleaved length 5mm to 16mm
• Splicing modes Splice mode: 300, Heater mode:100
• Typical Splice Loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
• Return loss > 60dB
• Splicing Time Typical 7sec (Standard SM, SM-SM mode)
• Splice loss estimate Available
• Sleeve heating time Typical 13sec with IS-60 mode, IS-60 sleeve
• Applicable protection sleeve 40mm,60mm and micro sleeves
• Storage of splice result Date : 5,000 Up to, Image: 5,000 Up to
• Tension test 1.96N to 2.25N
• Operating condition Altitude: 5,000m above sea level, Temperature: -10℃~50℃, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
• Storage condition Temperature: -40℃~80℃, Humidity: 0~95%
• Dimension 124(W)ｘ189(L)ｘ75(H)mm(Without rubber protector)
• Weight 1.1kg(Including battery)
• Viewing method and display Two CMOS cameras and 4,3-inch color LCD monitor
• Fiber view and magnification X/Y : 130X MAX:260X
• Power supply Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC Charger
• No.of splice cycles with battery Typical 200 cycles
• Electrode life More than 21,000 times
• Terminals USB
